Working with morphologies (or jaxley.io
)¶
In this tutorial, you will learn how to:
- Load morphologies and make them compatible with
Jaxley
- Use the visualization features
- Assemble a small network of morphologically accurate cells.
- How to use
Jaxley
s graph pipeline, which offers interoperability withnetworkX
. We will:- define morphologies via
networkX
graphs. - export morphologies to
networkX
graphs. - import morphologies using
Jaxley
’s graph pipeline.
- define morphologies via
Here are two code snippets which you will learn to understand in this tutorial:
import jaxley as jx
cell = jx.read_swc("my_cell.swc", ncomp=4)
cell.branch(2).set_ncomp(2) # Modify the number of compartments of a branch.
import jaxley as jx
import networkx as nx
from jaxley.io.graph import swc_to_graph, make_jaxley_compatible, from_graph, to_graph
graph = swc_to_graph("tests/swc_files/morph.swc")
graph = make_jaxley_compatible(graph)
cell = from_graph(graph)
graph = to_graph(cell)
pos = {k: np.array([d["x"], d["y"]]) for k, d in graph.nodes(data=True)}
nx.draw(graph, pos, node_size=5)
To work with more complicated morphologies, Jaxley
supports importing morphological reconstructions via .swc
files.
.swc
is currently the only supported format. Other formats like .asc
need to be converted to .swc
first, for example using the BlueBrain’s morph-tool. For more information on the exact specifications of .swc
see here.
import jaxley as jx
import networkx as nx
import numpy as np
import matplotlib.pyplot as plt
from jaxley.channels import HH
from jaxley.synapses import IonotropicSynapse
from jaxley.io.graph import swc_to_graph, make_jaxley_compatible, from_graph, to_graph
To work with .swc
files, Jaxley
implements a custom .swc
reader. The reader traces the morphology and identifies all uninterrupted sections. These uninterrupted sections are called branches
in Jaxley
. Each branch
is then further partitioned into compartments
.
To demonstrate this, let’s import an example morphology of a Layer 5 pyramidal cell and visualize it.
# import swc file into jx.Cell object
fname = "data/morph.swc"
cell = jx.read_swc(fname, ncomp=8) # Use eight compartments per branch.
# print shape (num_branches, num_comps)
print(cell.shape)
cell.show()
(157, 1256)
local_comp_index | global_comp_index | local_branch_index | global_branch_index | local_cell_index | global_cell_index | |
---|---|---|---|---|---|---|
0 | 0 | 0 | 0 | 0 | 0 | 0 |
1 | 1 | 1 | 0 | 0 | 0 | 0 |
2 | 2 | 2 | 0 | 0 | 0 | 0 |
3 | 3 | 3 | 0 | 0 | 0 | 0 |
4 | 4 | 4 | 0 | 0 | 0 | 0 |
... | ... | ... | ... | ... | ... | ... |
1251 | 3 | 1251 | 156 | 156 | 0 | 0 |
1252 | 4 | 1252 | 156 | 156 | 0 | 0 |
1253 | 5 | 1253 | 156 | 156 | 0 | 0 |
1254 | 6 | 1254 | 156 | 156 | 0 | 0 |
1255 | 7 | 1255 | 156 | 156 | 0 | 0 |
1256 rows × 6 columns
As we can see, this yields a morphology that is approximated by 1256 compartments. Depending on the amount of detail that you need, you can also change the number of compartments in each branch:
cell = jx.read_swc(fname, ncomp=2)
# print shape (num_branches, num_comps)
print(cell.shape)
cell.show()
(157, 314)
local_comp_index | global_comp_index | local_branch_index | global_branch_index | local_cell_index | global_cell_index | |
---|---|---|---|---|---|---|
0 | 0 | 0 | 0 | 0 | 0 | 0 |
1 | 1 | 1 | 0 | 0 | 0 | 0 |
2 | 0 | 2 | 1 | 1 | 0 | 0 |
3 | 1 | 3 | 1 | 1 | 0 | 0 |
4 | 0 | 4 | 2 | 2 | 0 | 0 |
... | ... | ... | ... | ... | ... | ... |
309 | 1 | 309 | 154 | 154 | 0 | 0 |
310 | 0 | 310 | 155 | 155 | 0 | 0 |
311 | 1 | 311 | 155 | 155 | 0 | 0 |
312 | 0 | 312 | 156 | 156 | 0 | 0 |
313 | 1 | 313 | 156 | 156 | 0 | 0 |
314 rows × 6 columns
The above assigns the same number of compartments to every branch. To use a different number of compartments in individual branches, you can use .set_ncomp()
:
cell.branch(1).set_ncomp(4)
As you can see below, branch 0
has two compartments (because this is what was passed to jx.read_swc(..., ncomp=2)
), but branch 1
has four compartments:
cell.branch([0, 1]).nodes
local_cell_index | local_branch_index | local_comp_index | length | radius | axial_resistivity | capacitance | v | global_cell_index | global_branch_index | global_comp_index | controlled_by_param | |
---|---|---|---|---|---|---|---|---|---|---|---|---|
0 | 0 | 0 | 0 | 0.050000 | 8.119000 | 5000.0 | 1.0 | -70.0 | 0 | 0 | 0 | 0 |
1 | 0 | 0 | 1 | 0.050000 | 8.119000 | 5000.0 | 1.0 | -70.0 | 0 | 0 | 1 | 0 |
2 | 0 | 1 | 0 | 3.120779 | 7.806172 | 5000.0 | 1.0 | -70.0 | 0 | 1 | 2 | 1 |
3 | 0 | 1 | 1 | 3.120779 | 7.111231 | 5000.0 | 1.0 | -70.0 | 0 | 1 | 3 | 1 |
4 | 0 | 1 | 2 | 3.120779 | 5.652394 | 5000.0 | 1.0 | -70.0 | 0 | 1 | 4 | 1 |
5 | 0 | 1 | 3 | 3.120779 | 3.869247 | 5000.0 | 1.0 | -70.0 | 0 | 1 | 5 | 1 |
Once imported the compartmentalized morphology can be viewed using vis
.
# visualize the cell
cell.vis()
plt.axis("off")
plt.title("L5PC")
plt.show()
vis
can be called on any jx.Module
and every View

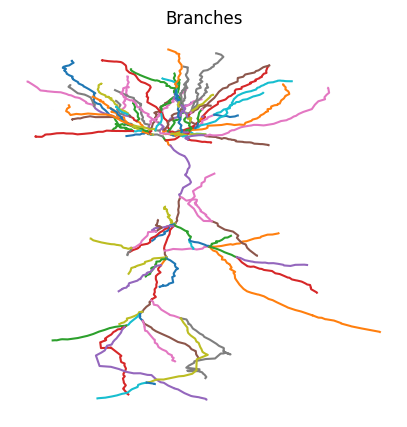

of the module. This means we can also for example use vis
to highlight each branch. This can be done by iterating over each branch index and calling cell.branch(i).vis()
. Within the loop.
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
# define colorwheel with 10 colors
colors = plt.cm.tab10.colors
for i, branch in enumerate(cell.branches):
branch.vis(ax=ax, color=colors[i % 10])
plt.axis("off")
plt.title("Branches")
plt.show()
While we only use two compartments to approximate each branch in this example, we can see the morphology is still plotted in great detail. This is because we always plot the full .swc
reconstruction irrespective of the number of compartments used. The morphology lives seperately in the cell.xyzr
attribute in a per branch fashion.

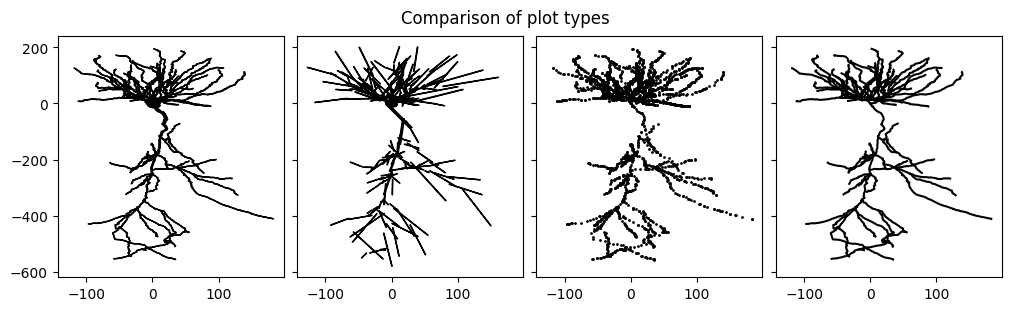

In addition to plotting the full morphology of the cell using points vis(type="scatter")
or lines vis(type="line")
, Jaxley
also supports plotting a detailed morphological vis(type="morph")
or approximate compartmental reconstruction vis(type="comp")
that correctly considers the thickness of the neurite. Note that "comp"
plots the lengths of each compartment which is equal to the length of the traced neurite. While neurites can be zigzaggy, the compartments that approximate them are straight lines. This can lead to miss-aligment of the compartment ends. For details see the documentation of vis
.

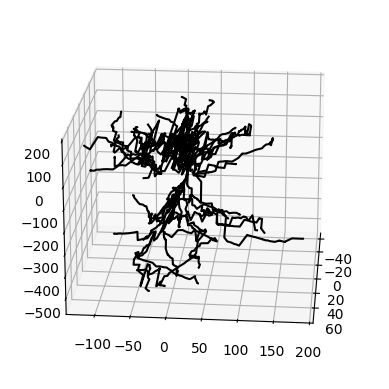

The morphologies can either be projected onto 2D or also rendered in 3D.
# visualize the cell
fig, ax = plt.subplots(1, 4, figsize=(10, 3), layout="constrained", sharex=True, sharey=True)
cell.vis(ax=ax[0], type="morph", dims=[0,1])
cell.vis(ax=ax[1], type="comp", dims=[0,1])
cell.vis(ax=ax[2], type="scatter", dims=[0,1], s=1)
cell.vis(ax=ax[3], type="line", dims=[0,1])
fig.suptitle("Comparison of plot types")
plt.show()
# set to interactive mode
# %matplotlib notebook
# plot in 3D
fig = plt.figure()
ax = fig.add_subplot(111, projection='3d')
cell.vis(ax=ax, type="line", dims=[2,0,1])
ax.view_init(elev=20, azim=5)
plt.show()

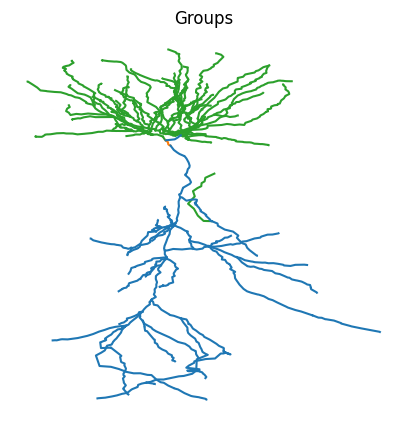

Since Jaxley
supports grouping different branches or compartments together, we can also use the id
labels provided by the .swc
file to assign group labels to the jx.Cell
object.
print(list(cell.groups.keys()))
fig, ax = plt.subplots(1, 1, figsize=(5, 5))
colors = plt.cm.tab10.colors
cell.basal.vis(ax=ax, color=colors[2])
cell.soma.vis(ax=ax, color=colors[1])
cell.apical.vis(ax=ax, color=colors[0])
plt.axis("off")
plt.title("Groups")
plt.show()
['soma', 'basal', 'apical', 'custom']
To build a network of morphologically detailed cells, we can now connect several reconstructed cells together and also visualize the network. However, since all cells are going to have the same center, Jaxley
will naively plot all of them on top of each other. To seperate out the cells, we therefore have to move them to a new location first.
net = jx.Network([cell]*5)
jx.connect(net[0,0,0], net[2,0,0], IonotropicSynapse())
jx.connect(net[0,0,0], net[3,0,0], IonotropicSynapse())
jx.connect(net[0,0,0], net[4,0,0], IonotropicSynapse())
jx.connect(net[1,0,0], net[2,0,0], IonotropicSynapse())
jx.connect(net[1,0,0], net[3,0,0], IonotropicSynapse())
jx.connect(net[1,0,0], net[4,0,0], IonotropicSynapse())
net.rotate(-90)
net.cell(0).move(0, 300)
net.cell(1).move(0, 500)
net.cell(2).move(900, 200)
net.cell(3).move(900, 400)
net.cell(4).move(900, 600)
net.vis()
plt.axis("off")
plt.show()
Congrats! You have now learned how to vizualize and build networks out of very complex morphologies. To simulate this network, you can follow the steps in the tutorial on how to build a network or continue to learn about how you can interface with networkX
.
Working with graphs¶
While swc
is a great way to save, load and specify complex morphologies, often more flexibility is needed. In these cases graphs present a natural way to represent and work with neural morphologies, allowing for easy fixing, pruning, smoothing and traversal of neural morphologies on the fly. For this purpose Jaxley
also comes with a seperate networkX
toolset, that allows for easy interoperability between networkX
graphs and Jaxley
Modules.

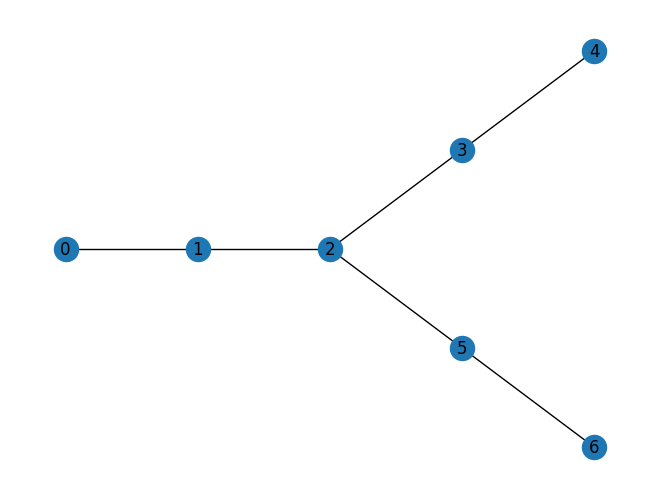

To demonstrate this, let’s first define a simple morphology via a networkX graph.
nodes = {
0: {"id":1, "x": -1, "y": 0, "z": 0, "r": 2.0},
1: {"id":1, "x": 0, "y": 0, "z": 0, "r": 2.0},
2: {"id":1, "x": 1, "y": 0, "z": 0, "r": 2.0},
3: {"id":1, "x": 2, "y": 1, "z": 0, "r": 1.0},
4: {"id":1, "x": 3, "y": 2, "z": 0, "r": 1.0},
5: {"id":1, "x": 2, "y": -1, "z": 0, "r": 1.0},
6: {"id":1, "x": 3, "y": -2, "z": 0, "r": 1.0},
}
edges = ((0, 1),(1, 2),(2, 3),(3, 4),(2, 5),(5, 6))
g = nx.DiGraph()
g.add_nodes_from(nodes.items())
g.add_edges_from(edges, l=1)
# Setting any of these attributes is optional. It is sufficient to define the
# connectivity and simply do g = nx.DiGraph(edges). In this case, r and l will
# be set to default values and x, y, z can be computed using Cell.compute_xyz().
nx.draw(g.to_undirected(), pos={k: (v["x"], v["y"]) for k, v in nodes.items()}, with_labels=True)
The above graph can now be treated like a traced morphological reconsruction. This means we can use io.graph
to import it into a jx.Module
using the from_graph
method.
cell = from_graph(g, ncomp=2)
cell.vis()
plt.show()

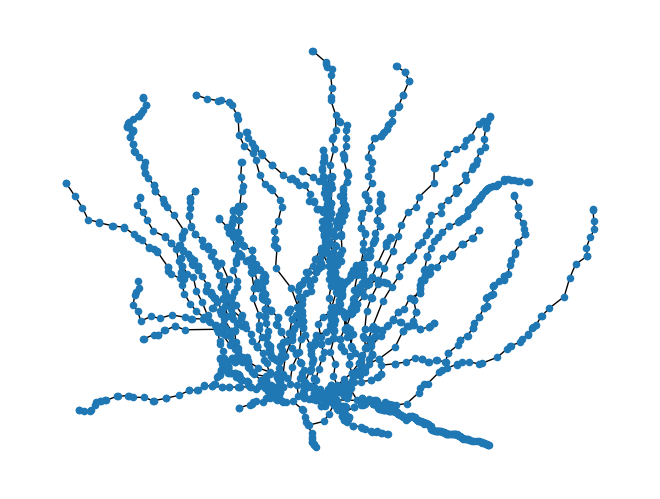

To work with more complex morphologies io.graph
also provides a way to import swc
reconstructions as graphs. This means we can easily view the entire tracing of the morphology. At this stage the networkX
graph could also easily be fixed, pruned or smoothed. To demo this lets remove the apical dendrites (id=4).
fname = "data/morph.swc"
graph = swc_to_graph(fname)
# manipulate the graph
ids = nx.get_node_attributes(graph, "id")
ids = {k: v for k, v in ids.items() if v != 4}
graph = nx.subgraph(graph, ids).copy()
pos = {k: (v["x"], v["y"]) for k, v in graph.nodes.items()}
nx.draw(graph.to_undirected(), pos=pos, node_size=20)

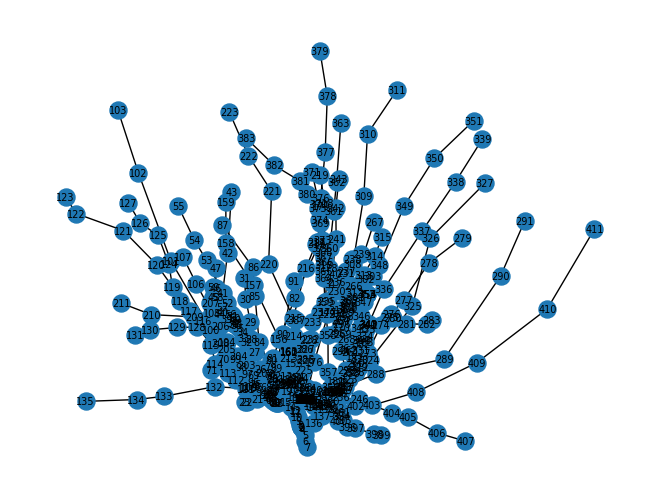

To make the traced and possibly edited morphology compatible with Jaxley
from_graph
segments it into branches and then divides the branches up into compartments. This is done by make_jaxley_compatible
(called at the beginning og from_graph
), which produces a subgraph of the original morphology and adds additional attributes that Jaxley
requires to simulate it (see the documentation of make_jaxley_compatible
for details).
Let’s see what this looks like.
graph = make_jaxley_compatible(graph)
print(f"node attributes {graph.nodes[0]}")
print(f"edge attributes {graph.edges[(0, 1)]}")
pos = {k: (v["x"], v["y"]) for k, v in graph.nodes.items()}
nx.draw(graph.to_undirected(), pos=pos, with_labels=True, font_size=7, node_size=150)
node attributes {'x': 0.0, 'y': 0.0, 'z': 0.0, 'branch_index': 0, 'comp_index': 0, 'groups': ['soma'], 'radius': 8.119000434875488, 'length': 0.025, 'cell_index': 0}
edge attributes {'l': 0.001, 'type': 'intra_branch'}
Again we can use the from_graph
function to convert the graph into a Cell
object, which Jaxley
can then simulate or optimize.
cell = from_graph(graph, ncomp=2)
# add mechanism to cell
cell.insert(HH())
# change parameters, pretending the cell has been optimized
for branch in cell:
y_pos = branch.xyzr[0][0,1]
branch.set("HH_gNa", 0.5 + 0.5 * y_pos)

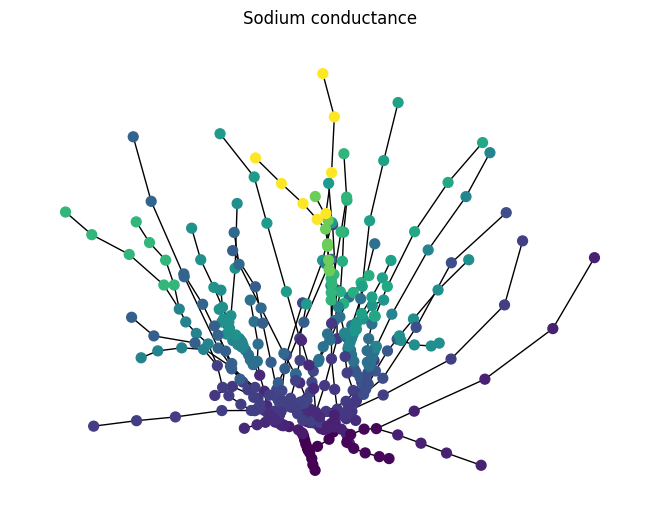

To close the loop Jaxley
also offers the option to export any Module
to a networkX
graph object. This ability offers another way to store or share the current Module state, since to_graph
attaches all relevant attributes to the nodes and eges of the graph. It can also be used to make more complex visualizations, using any of these attributes i.e. channel densities very easily.
graph = to_graph(cell, channels=True)
# plot of the cell, coloring each node according to the sodium conductance
pos = {k: (v["x"], v["y"]) for k, v in graph.nodes.items()}
nx.draw(graph.to_undirected(), pos=pos, node_color=[graph.nodes[n]["HH_gNa"] for n in graph.nodes], cmap="viridis", with_labels=False, node_size=50)
plt.title("Sodium conductance")
plt.show()
Congrats! You have now learned how to interface with networkX to further customize and manipulate imported morphologies.
